Ground Support Equipment (GSE)
Enhance aircraft operations with our durable and reliable Ground Support Equipment (GSE), essential for ground servicing and maintenance. Alpha Trade provides a range of GSE solutions tailored for military and commercial aviation needs. Our GSE is designed for maximum reliability, efficiency, and ease of use in demanding operational environments.

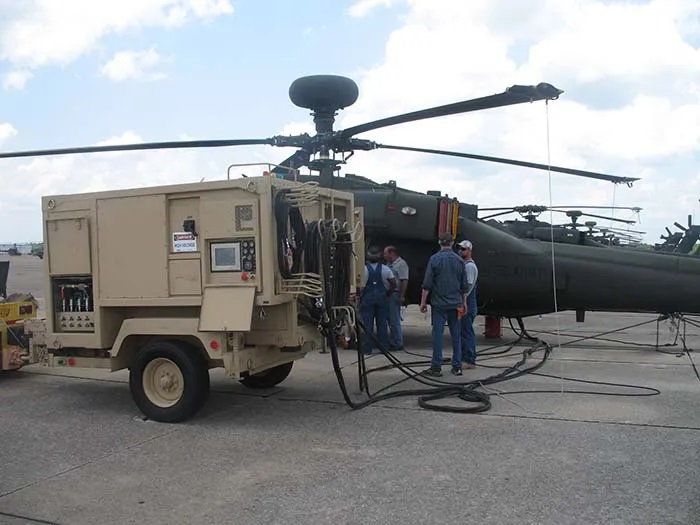

Multi-Function Aircraft Ground Power Unit
Key Features
- All-In-One Model (Hydraulic Power, Air Start Power, Electrical Power)
- Diesel Engine Driven (EPA TIER III)
- Hydraulic Power (Flow: 16gpm, Pressure: 250-3500psig)
- Pneumatic Power (Flow: 30lb/min, Pressure: 30 to 50 psia)
- Electric Power
- AC: 115/200VAC, 400HZ, 60KVA, 3-Phase
- DC: 28VDC, 300Amp
- Highly efficient purification system removes moisture, particulate & dissloved gases
- Flood Lighting
- High towing speed: ~85 km/h
Product Image

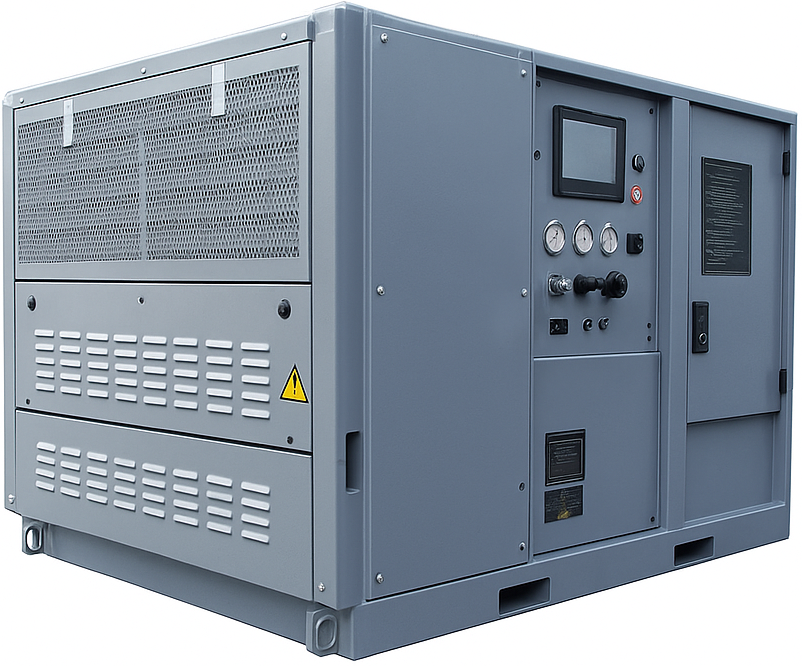

High-Purity Self-Generating Nitrogen Servicing Cart
Key Features
- Diesel Engine Driven
- 99.5% per High Purity Nitrogen MIL SPEC A-A-59503A, Type I(gaseous), Grade B (99.5%), Class I (oil-free)
- Full Charge: 1hours (99.5% pure nitrogen)
- Flow: 30SCFM@5000PSI
- Pressure: 5000PSI
- Capacity: 912SCF@5000PSI
- Output
- Low pressure: 0-400 PSIG±10PSI
- High pressure: 0-5000 PSIG±50PSI
Product Image
.png)

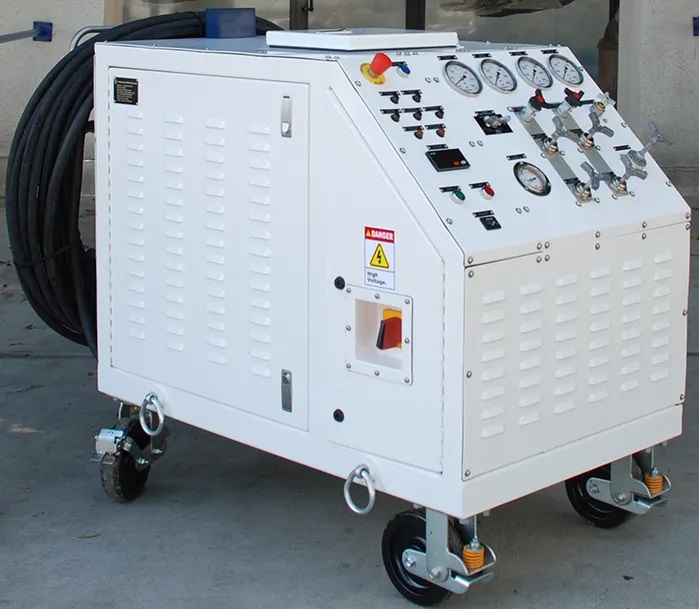

Portable Hydraulic Test Stand
Key Features
- Portable, self-contained hydraulic pumping unit
- Service and Evaluate the hydraulic systems of aircraft
- Single pump, Dual outlet
- Electric or Enngine Driven model
- Single outlet : 12 ~ 15 GPM@3000PSI
- Dual outlet: 6~7 GPM@3000PSI
Product Image
Aircraft Ground Power Unit
Key Features
- Diesel Engine (Low emission EPA TIER III)
- Electric Power
- AC Output: 115/220VAC, 60kVA, 400HZ, 3-Phase
- DC Output: 28 VDC, 600 Amp
- ± 2 Hz steady rate regulation and 1 Hz modulation
- Under/Over voltage protection (MIL-STD-704F)
- Superior frequency regulation
- Compact size for air transportability
Product Image
Other GSE Products:
- Portable Hydraulic Purification System
- Ammunition Loading System
Contact us to learn more about how our GSE can support your specific requirements.
